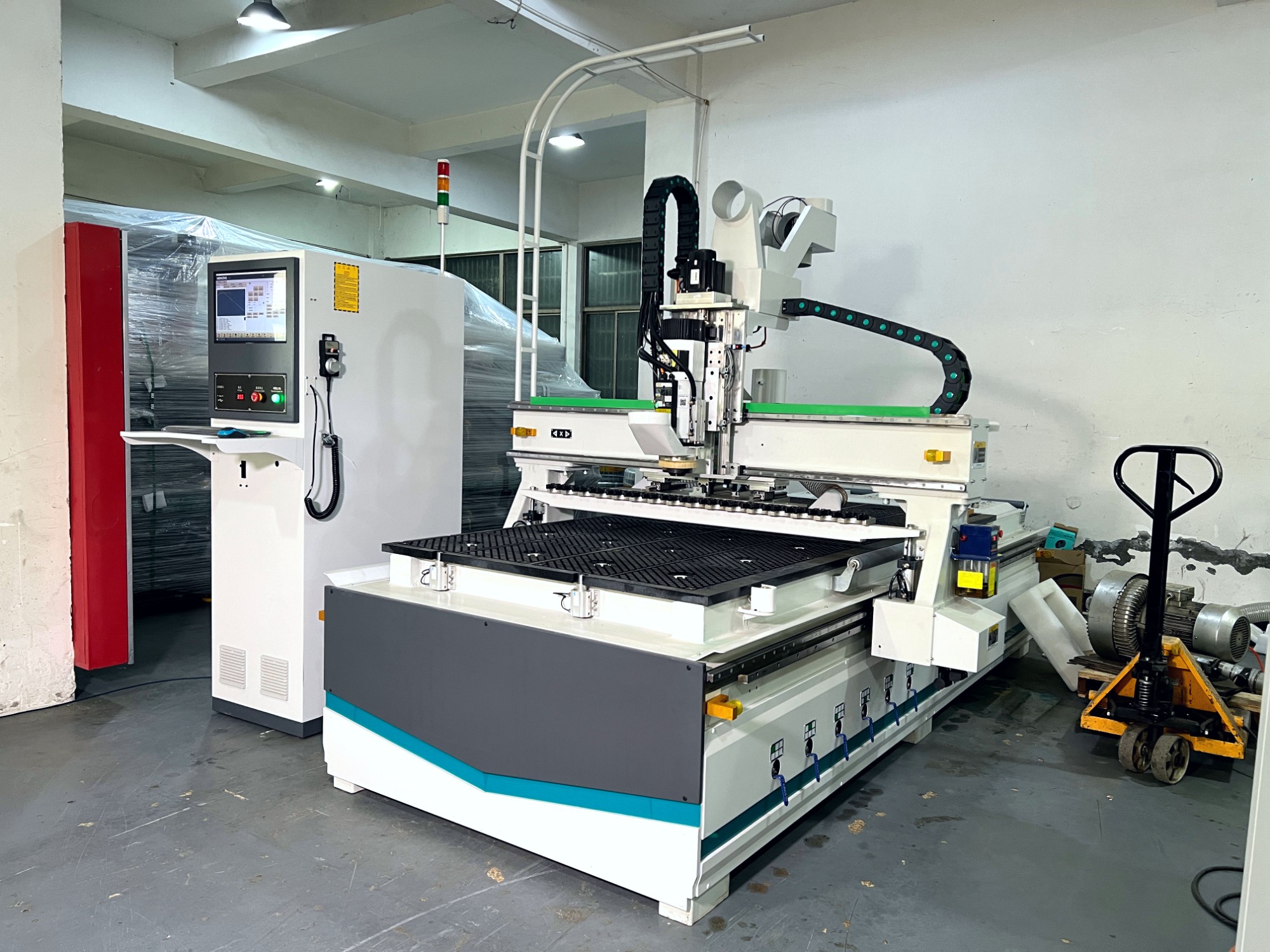

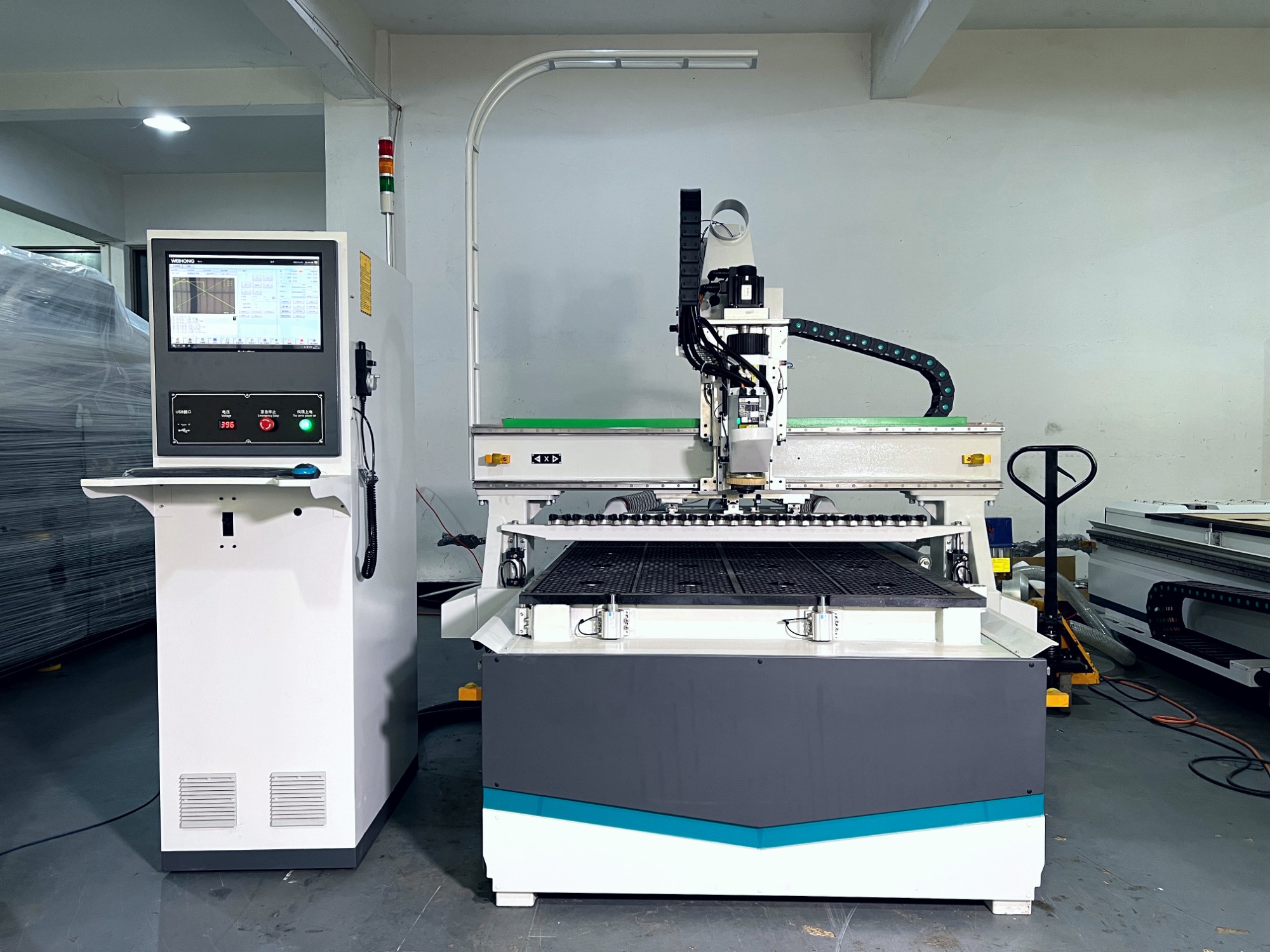

DRL1325 linear ATC CNC router is mainly used for panel furniture doors and cabinet production. It can quickly drill, groove, and cut to solve all furniture production under one machinery. The machine is equipped high power ATC(automatic tool change) spindle and linear type ATC tool stock, suitable for complex processing and diversification processing, multiple usages. It can do the cutting, drilling, grooving, shaped cutting, carving at one time. The machine operation is easy and very suitable for customized cabinet and cabinet door order production.
Working area | 1300*2500mm |
Spindle Power | 9KW air cooling spindle, or optional |
Running speed | 60m/min |
Processing accuracy | ±0.01 |
Repeat position accuracy | ±0.01 |
Drive motor | Servo motor driving system with shimpo reducer |
Power supply | AC 380V/50~60HZ/3PH |
N.W. | 2500kgs |
X,Y-axis transmission mode | Germany Herion helical Gear Rack |
Z axis transmission mode | High precision ball screws Taiwan TBI |
Inverter | 9kw/11kw |
Working table | vacuum absorption table with T-slot or Aluminum T slot table |
Controlling system | Taiwan LNC Industrial Controller with hand-held wheel |
Guide Rail | Taiwan Hiwin 30mm X, Y axis, Z axis Taiwan TBI ball screws |
Compatible software | Type 3/Artcam etc |
Lubrication system | Automatic lubrication system |
Tool Setting | Automatic surface tool setting device |
